Wall-Mounted Toilets: Space-Saving & Modern Design

Here’s a concise sequence of the main installation stages:

1. Site assessment and measurements: Confirm wall cavity depth, framing, and rough-in locations.
2. Carrier frame and cistern selection: Pick a load-rated in-wall system compatible with your wall finish.
3. Frame anchoring and plumbing hookup: Secure the frame to studs/blocking and connect water and waste lines.
4. Wall finishing and flush plate installation: Close the wall, fit the flush plate access, and mount the bowl.
5. Testing and user-height adjustment: Verify structural integrity, seals, and flush performance.

The table below outlines key components, their roles, and installer notes so you can see how each part contributes to a serviceable system.

The concealed cistern is the in-wall tank that holds flush water and houses the valve assemblies; the carrier frame is the steel structure that supports the bowl and transfers load to the building framing. The cistern works with single- or dual-flush mechanisms and includes fill and overflow controls; it must be positioned so technicians can reach internal parts through the flush plate. Carrier frames come in different depths and load ratings, and matching frame spacing to bowl mounting holes is critical to avoid retrofit issues. Coordinating frame placement, inlet/outlet locations, and finished wall thickness makes the system serviceable and reliable — which is why professional installation is recommended.

Cost breaks down into three parts: the fixture (bowl and flush plate), the in-wall carrier and cistern, and labor for installation and finishing. Fixture prices vary by brand and features — like dual-flush or rimless bowls — while carrier frames add equipment cost that changes with load rating and depth. Labor covers structural reinforcement, plumbing work, finishing, and testing; tile removal or moving drains increases the total. The table below shows common brands, their typical price ranges, and standout features to help you weigh value and serviceability.

That comparison highlights price tiers and serviceability factors installers consider when recommending products, helping you balance upfront cost with long-term support.

Wall-hung systems usually cost more upfront than standard floor-mounted toilets because of the carrier frame, in-wall cistern, and added labor for wall work and structural reinforcement. However, they can offer long-term value through space optimization and easier cleaning. Whether the extra investment makes sense depends on renovation specifics — for example, if the wall must be opened or drains moved. Comparing lifecycle costs, cleaning time saved, and potential aesthetic-driven resale value will help you decide if a concealed cistern aligns with your goals.

From a design view, wall-mounted toilets hide the cistern and expose only the bowl and flush plate, which pairs well with floating vanities and uninterrupted floors. Floor-mounted toilets can fit modern or traditional schemes but change the room’s visual weight because they sit on the floor. In small powder rooms, a floating toilet can free clearance for a narrow vanity or open shelving; in larger master baths the decision often becomes stylistic rather than spatial. Knowing these visual impacts helps you pick fixtures and finishes that work together.

To integrate a wall-mounted toilet in a modern bathroom, balance the floating bowl with streamlined vanities, concealed storage, and coordinated flush-plate finishes for a clean, cohesive look. Use shallow cistern frames and compact bowls to limit wall depth and preserve space for nearby cabinetry or recessed shelves. Thoughtful lighting, tile layout, and flush-plate finishes draw the eye and emphasize the uncluttered lines that define modern design. Below is a practical checklist of design priorities.

1. Choose a compact bowl profile: Prioritize bowls with smaller projection for tight bathrooms.
2. Coordinate finishes: Match the flush plate finish with faucets and hardware for a unified look.
3. Plan storage solutions: Use recessed niches or floating vanities to keep the floor feeling open.
4. Consider accessibility: Set seat height at installation to suit user comfort or ADA guidelines.

These priorities help strike a balance between form and function. Next we cover specific layout tips for small bathrooms.

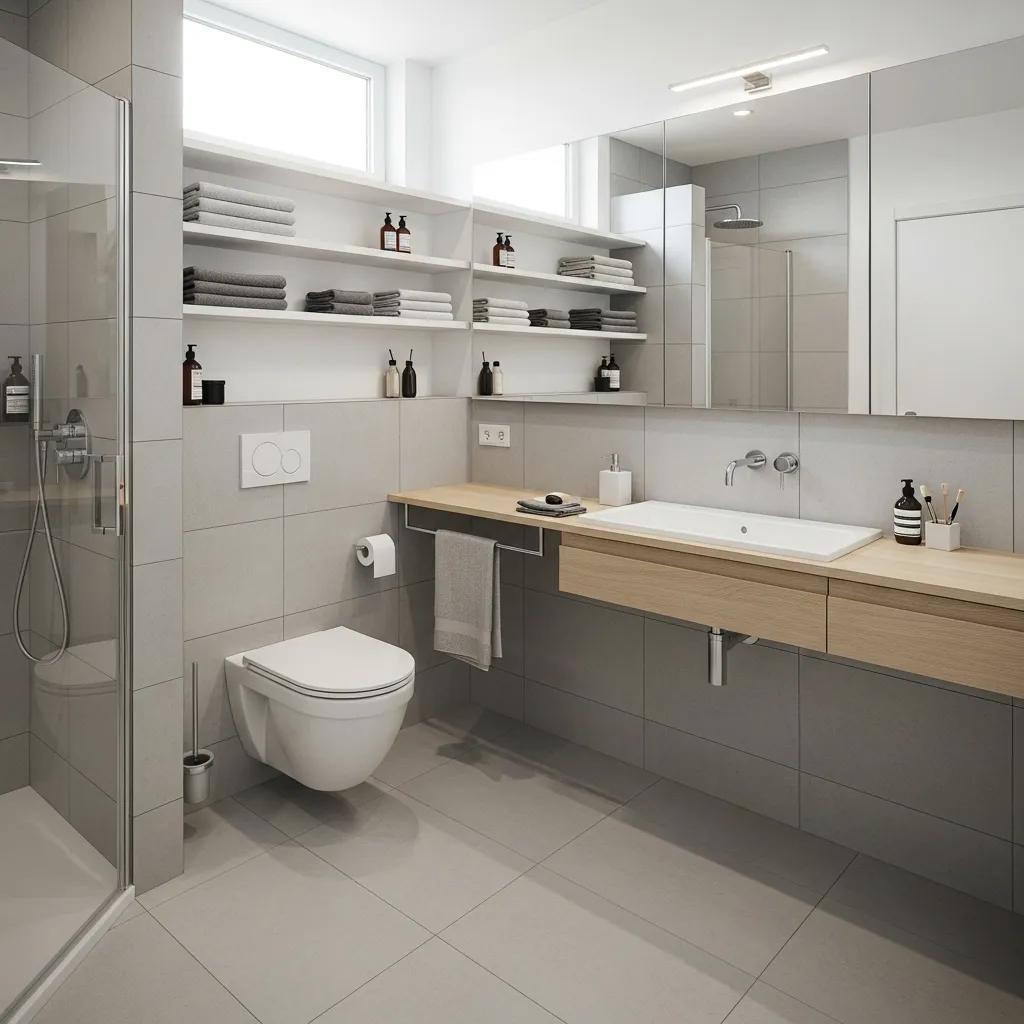

Floating toilets make small bathrooms feel larger by reclaiming both visual and physical floor space, which allows narrower circulation and more flexible sink and storage placement. Practical placement tips include locating the wall-hung fixture opposite the door to open the view corridor, selecting a shallow-frame carrier to reduce wall depth, and pairing the toilet with a compact vanity to preserve turning radius. These moves improve circulation and make a small bathroom feel more open. Next we’ll review accessibility and customization options.

Wall-mounted toilets offer clear accessibility benefits because bowl height is set during installation to meet user needs. Options include ADA-compliant bowls, bidet-compatible seats, and elongated bowls for comfort. Many manufacturers offer dual-flush mechanisms, soft-close seats, and higher-end models with heated seats or integrated bidet controls. When planning for accessibility, installers also check transfer clearances and grab-bar locations so the installation meets usability goals. The following sections cover service and maintenance and how local pros support long-term performance.

Technicians reach the cistern through the removable flush plate or an integrated service panel to access internal valves, fill mechanisms, and seals without removing finished walls. Many common adjustments and part swaps — fill valves, seals, or actuators — are done through this opening, which greatly reduces the need for invasive repairs. If problems extend beyond reachable components, controlled wall opening may be necessary; professionals plan that work to limit cosmetic impact and explain options clearly to homeowners.

Frequent issues include continuous running from worn fill or flush valves, intermittent leaks at outlet gaskets, and sticking actuators behind flush plates. Many of these are diagnosable and repairable through the access panel. Home maintenance tips: test the flush periodically, listen for continuous fill sounds, and avoid harsh chemicals that can damage seals. We recommend a professional inspection every 1–2 years for residential systems to check valve function and seals. If you hear continuous running or see leakage, call for service promptly. For urgent needs, Frost & Kretsch Plumbing offers emergency response and scheduled appointments.

1. Inspect for continuous running: If water runs after a flush, schedule service to check the fill valve.
2. Test flush plate operation: Confirm actuator travel and button responsiveness remain smooth.
3. Avoid abrasive chemicals: Use manufacturer-recommended cleaners to protect seals and finishes.
