Designing Your Kitchen Sink Plumbing Layout: A Practical Guide to Installation, Diagrams & Costs

A kitchen sink plumbing layout is the blueprint for how clean water arrives and wastewater leaves your sink — through the drain, trap, vent, and supply lines. A well-planned layout keeps water flowing, prevents sewer gas from entering your home, avoids stubborn clogs, and makes routine maintenance straightforward. This guide covers the fundamentals: how different sink styles change plumbing needs, a step-by-step installation overview, how to read plumbing diagrams, the main cost drivers, and design choices that lower long‑term maintenance. You’ll get practical dimensions and placement tips for rough‑ins, learn where P‑traps and trap arms sit in relation to vents, and see how adding a garbage disposal or dishwasher affects routing and electrical planning. Clear instructions and diagram notes make this useful for remodels or new builds, and we include local service options if you want a pro to handle the work.

What Are the Different Kitchen Sink Types and Their Plumbing Requirements?

The sink style you pick controls drain layout, cabinet changes, and venting needs. A single‑basin sink usually needs a straight tailpiece, one P‑trap, and a standard trap arm to a vented drain. Double basins can use a continuous‑waste kit or separate disposals and often need careful trap arm alignment to avoid siphoning. Farmhouse (apron‑front) sinks frequently have offset drains, which can mean longer trap arms and cabinet modifications. Island sinks create venting challenges and commonly rely on either an air admittance valve (AAV) or a remote vent run up through a chase — both affect routing and complexity.

The table below summarizes common sink types and typical plumbing implications.

Sink Type	Typical Drain Configuration	Plumbing Considerations
Single Basin Sink	Single tailpiece to P‑trap	Simple layout, easy service access, standard venting
Double Basin Sink	Continuous‑waste or two disposals	May need continuous‑waste kit or dual‑disposal wiring; careful trap arm alignment
Farmhouse Sink	Offset drain with longer trap arm	Often requires cabinet changes and custom tailpiece or adapter
Island Sink	Remote venting or air admittance valve	Needs vertical chase or AAV; plan for electrical and access

Knowing these trade‑offs helps decide whether you can reuse existing rough‑ins or must reroute drains and change cabinets. The next section walks through the practical installation steps: measuring rough‑ins, assembling drains, and testing slope and seals.

How Does Single Basin Sink Plumbing Differ from Other Types?

Single‑basin plumbing is centered on one drain assembly and one P‑trap, which keeps the drain path short and reduces potential trouble spots. The strainer attaches to a tailpiece that drops to the P‑trap; the trap arm then slopes to the branch drain. Single basins pair easily with disposals or open tailpieces and usually avoid offset fittings. They’re a good choice when you want a big, uninterrupted bowl and easier maintenance, though they’re less convenient for multitasking than a double basin.

Because the layout is simpler, installations are often quicker and cheaper. Adding a disposal or using a dishwasher knockout still requires electrical planning and proper knockouts, but for many retrofit projects a single basin is the most straightforward option when cabinet and rough‑in locations are fixed.

What Are the Plumbing Considerations for Double Basin and Farmhouse Sinks?

Double basins require a method to combine both drains: a continuous‑waste fitting ties the two bowls to one trap, while dual‑disposal setups mean extra wiring and possibly a larger drain path. Farmhouse sinks complicate matters because the drain can be offset from the cabinet center, so you may need longer trap arms, custom tailpieces, and cabinet reinforcement. In both cases it’s essential to keep proper slope and trap arm length to the vent to preserve the trap seal and prevent siphoning.

Continuous‑waste connections simplify venting and reduce odor risk, while dual disposals offer processing at each bowl at the cost of added electrical work. Plan for cabinet access and future serviceability when choosing assemblies and offset solutions.

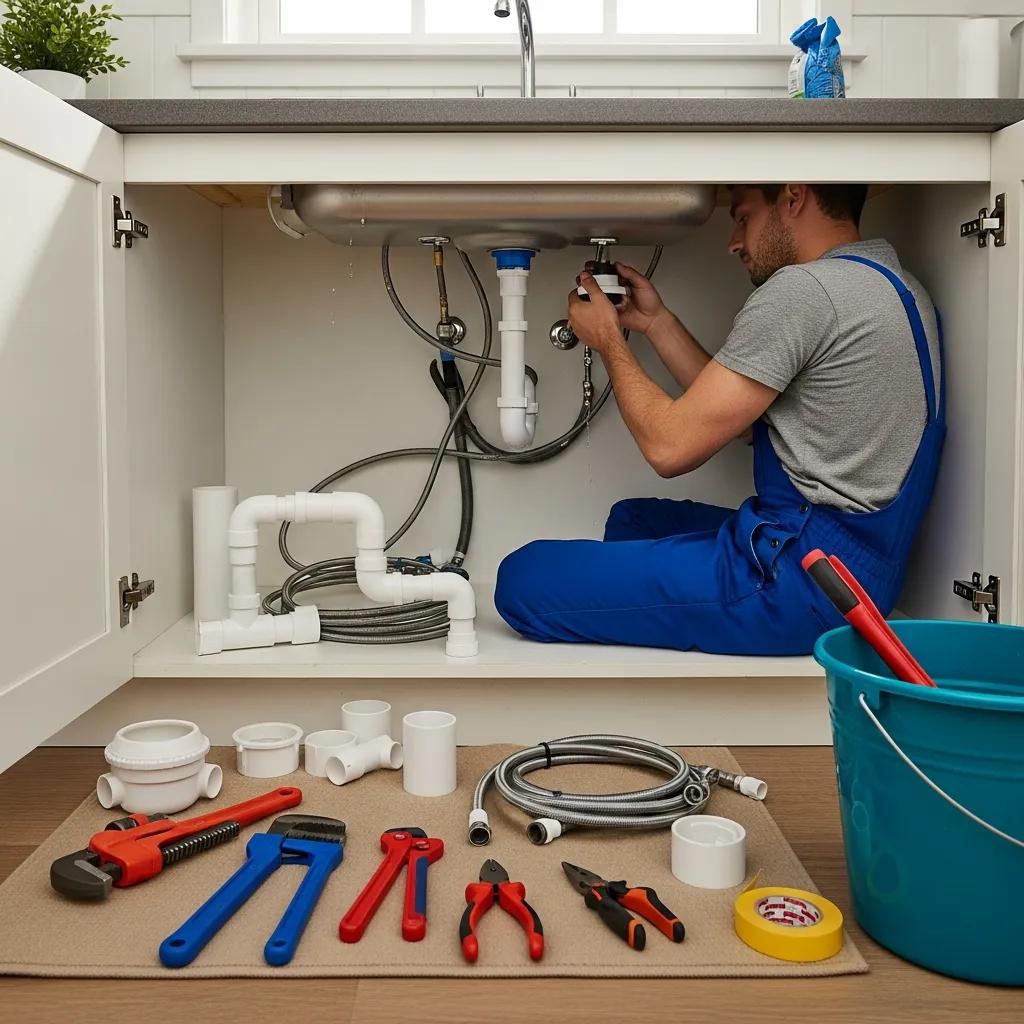

How To Plumb a Kitchen Sink: Step-by-Step Installation Process

Installing a kitchen sink includes confirming the rough‑in, fitting the drain and P‑trap, routing vents, connecting supply lines, and testing for leaks and proper flow. Start by checking rough‑in locations, mark the drain centerline, and place shut‑off valves so faucet hoses reach without strain. Install the strainer and tailpiece, assemble the P‑trap ensuring the trap arm slopes correctly, and tie into the vented branch. Finish by connecting hot and cold supplies to shut‑offs, secure flexible connectors, then run water and inspect all joints and the trap seal.

Use this checklist to keep the work in order:

Verify rough‑in and fixture alignment: Confirm sink centerline, cabinet framing, and room for the trap and disposal.
Install sink strainer and tailpiece: Use plumber’s putty or the supplied gaskets per manufacturer directions for a watertight seal.
Assemble drain and P‑trap: Maintain trap arm slope (1/4″ per foot) toward the drain and orient the trap to the vent.
Connect supply lines and shut‑offs: Attach flexible hoses to shut‑offs and faucet inlets, and check for kinks or tension.
Test system: Run water, operate the disposal if present, and inspect all joints for leaks and proper venting.

In short: accurate rough‑in layout and correct trap and vent placement determine long‑term performance. If you prefer a licensed pro, Frost and Kretsch Plumbing handles sink and faucet installs, emergency repairs, and more complex venting or electrical work. Call (586) 675-0097, (248) 600-0426, or (313) 881-2818 to schedule service or get an estimate. Knowing when to hire a pro reduces code risks and preserves warranties.

What Are the Essential Plumbing Components for Kitchen Sink Installation?

Key components include the sink strainer, tailpiece, P‑trap, trap arm, branch drain, vent, supply lines, shut‑off valves, and the disposal flange if you’re installing a garbage disposal. The strainer keeps debris out and provides the threaded connection for the tailpiece; the tailpiece feeds the P‑trap, which holds a water seal to block sewer gas. Trap arms must slope correctly and tie into a vented branch to prevent siphoning. Supply lines and shut‑offs deliver hot and cold water and let you service fixtures without shutting off the whole house.

Common specs: 1‑1/2″ or 2″ drain sizes depending on disposal usage, and 1/2″ shut‑off valve inlets for supply lines. Choosing durable materials — brass or stainless strainers, PVC or ABS drains, and braided stainless supply hoses — extends life and reduces leak risk under heavy use.

When Should You Hire a Professional for Kitchen Sink Plumbing?

Call a licensed plumber if venting is complex, you’re installing an island sink, you’re relocating rough‑ins, or the job includes electrical work for disposals or instant‑hot units. These situations intersect with code and safety rules. Professionals make sure trap arm lengths, vent sizing, and inspections are handled correctly, and they coordinate any cabinet or subfloor work that affects the drain. Commercial projects or remodels that change drainage loads or need permits should also be left to experienced technicians.

If you find unknown pipe materials, corroded fittings, or prior DIY work that looks questionable, a pro inspection can prevent repeat leaks and more expensive repairs. Frost and Kretsch Plumbing provides licensed techs for complex installs and offers 24/7 emergency support when failures threaten your property, plus upfront estimates after inspection.

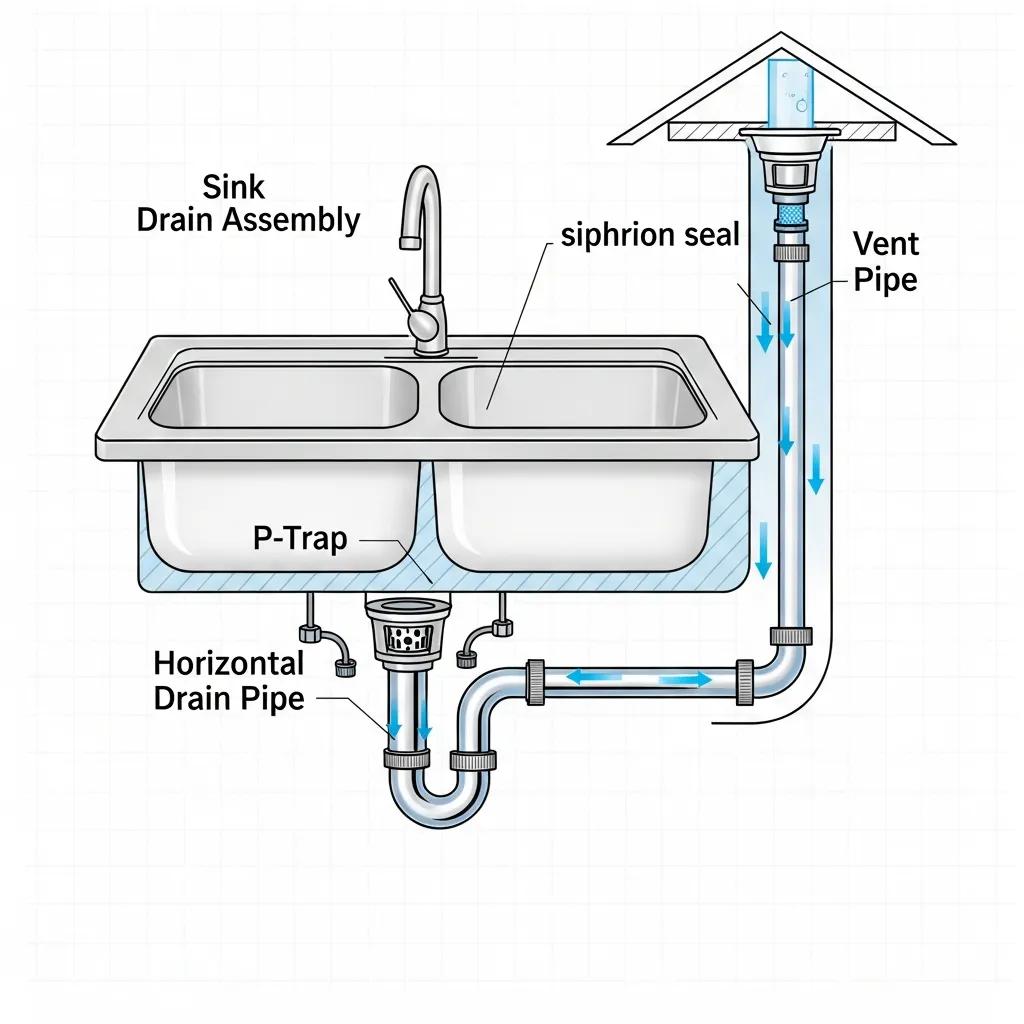

What Does a Kitchen Sink Plumbing Diagram Include?

A kitchen sink plumbing diagram is a scaled drawing that shows the sink, drain assembly, P‑trap, trap arm, branch drain, venting, supply shut‑offs, and fixture locations so installers can plan routing, slope, and service access. Diagrams use standard symbols to show strainers, traps, disposals, and dishwasher connections and annotate rough‑in heights and horizontal distances like wall‑to‑trap center. A good diagram calls out the relationship between the P‑trap and vent, the required slope (commonly 1/4″ per foot), and electrical locations for disposals — all details that reduce surprises on site and speed the install.

Below is a quick mapping of common diagram elements to their purpose and typical symbol.

Component	Function	Representation in Diagram
P-trap	Blocks sewer gas with a water seal	U‑shaped curve with trap arm and seal depth noted
Vent	Equalizes pressure and prevents siphoning	Vertical riser to roof or AAV symbol with distance notes
Drain assembly	Transports wastewater	Lines from tailpiece to trap to branch drain with slope callout
Garbage disposal	Grinds and discharges food waste	Device icon at sink outlet with electrical note and dishwasher knockout

Diagrams act as a shared plan between designer and installer, guiding rough‑ins and electrical coordination. If disposals or remodel specifics are in play, Frost and Kretsch Plumbing can prepare or review diagrams and perform disposal installs so the finished plumbing meets code and serviceability needs.

How Are P-Traps, Drains, and Venting Systems Represented in Plumbing Layouts?

P‑traps are shown as a curved or U‑shaped symbol with trap seal depth and trap arm direction called out, and diagrams note allowable trap arm length to the vent to avoid siphoning. This ensures the trap keeps its water seal and that the trap arm slopes correctly to the branch drain. Venting appears as a vertical riser to the roof or an AAV symbol where permitted, with distances and slopes annotated to show compliance with trap arm limits and vent sizing. Clear representations help installers plan fitting offsets, slope corrections, and access panels for future service.

Watch for errors like trap arms that are too long without intermediate venting or insufficient slope — both can cause slow drains or loss of trap seal. Accurate diagrams prevent these mistakes and guide proper rough‑ins during framing and cabinet installation.

How Does Garbage Disposal Integration Affect the Plumbing Diagram?

Adding a garbage disposal replaces the standard tailpiece with a disposal flange and unit and adds an electrical connection and usually a dishwasher knockout for waste discharge. The disposal’s size and flange position change where the trap can sit and may require a different trap arm or outlet position to avoid hitting the motor housing. Diagrams should show whether the disposal needs a dedicated circuit or a switched outlet per local code, and they should note dishwasher knockouts, high loops, or air gaps to prevent backflow. Dual‑disposal setups are rare but appear on diagrams as parallel units with separate wiring and combined or individual discharge routing into one trap.

When a remodel adds a disposal or alters the drain plan, a professional install ensures the diagram matches on‑site conditions. Frost and Kretsch Plumbing installs disposals and can update diagrams to coordinate electrical and drain routing with cabinet changes.

What Factors Influence Kitchen Sink Plumbing Cost?

Costs depend on sink type, whether you add a disposal, venting complexity, labor time and skill, permits and inspections, and material choices. A simple swap using existing rough‑ins and standard parts is the cheapest scenario. Island sinks, farmhouse sinks that need cabinet work, or installs that require new venting and electrical work raise costs. Labor is often the largest portion for complex jobs because rerouting drains or adding vent stacks involves demolition, framing coordination, and code‑compliant reassembly.

Main cost drivers include:

Cost Driver	Attribute	Typical Cost Impact
Sink Type	Farmhouse or island vs standard drop‑in	Moderate to high — cabinet work and modifications
Garbage Disposal	Basic vs premium unit plus wiring	Low to moderate — includes electrical labor
Venting Complexity	New vent stack or AAV required	Moderate — routing and inspections add time
Labor & Permits	Licensed labor hours and inspection fees	High variable depending on region and scope

Frost and Kretsch Plumbing provides transparent pricing with upfront estimates so you understand how these drivers affect your quote. To request a focused estimate for your sink type and project, call the numbers above to arrange an assessment and written proposal.

How Do Sink Type and Installation Complexity Affect Pricing?

Sink choice and complexity change both materials and time on site. Farmhouse sinks often need cabinet reinforcement, special cutouts, and custom tailpiece adapters — all adding parts and labor. Island sinks may require vertical chases or special venting that can mean ceiling work and longer drain runs, which increase labor and framing costs. Dual‑disposal installs involve two units, extra wiring, and possibly a modified trap layout, which raises material and electrical subcontracting fees.

For example, a simple replacement using existing in‑wall plumbing can take a few hours and minimal parts, while moving a drain for an island or installing a farmhouse sink can take a day or more and involve carpentry and permit fees. Thorough scoping up front keeps costs predictable.

What Are Typical Costs for Materials and Labor in Kitchen Sink Plumbing?

Material costs include strainers, P‑traps, trap arms, supply lines, and disposal flanges; prices vary with material choice such as PVC vs cast iron or brass vs plastic strainers. Labor is billed hourly or as a flat job rate and depends on technician skill, involvement of other trades (electrician, carpenter), and permit needs. Complex venting and cabinet changes multiply labor hours. Permit and inspection fees vary by region and should be included in estimates.

Common cost categories to expect:

Basic drain assembly and P‑trap: modest materials and short labor time.
Garbage disposal unit and installation: mid‑range material cost plus electrical work.
Farmhouse sink retrofits: higher material and cabinet labor costs.
Venting or reroute: moderate to high depending on routing and access.

A clear, itemized estimate that separates materials, labor, and permits helps you compare options and choose what fits your budget before work starts.

How Can You Prevent Common Kitchen Sink Plumbing Problems?

Good layout choices — correct slope, accessible P‑trap placement, properly sized vents, and serviceable access panels — reduce maintenance and failure points. Clogs and odors often come from poor slope, trapped low spots, or missing high loops on dishwasher drains; consistent slope and avoiding long horizontal runs lower clog risk. Prevent leaks by choosing the right materials, tightening fittings correctly, and avoiding strain on supply lines. Periodic checks of shut‑offs and trap seals catch wear before it becomes a bigger issue.

Use these preventive moves to cut down on service calls and extend component life:

Maintain slope: Keep the trap arm sloping 1/4″ per foot toward the drain.
Provide access: Add access panels or removable fittings under cabinets for easy service.
Use quality materials: Pick durable strainers, stainless or brass fittings, and braided supply lines.
Plan dishwasher routing: Include a high loop or air gap to stop backflow and odors.

Designing for serviceability and correct venting reduces long‑term maintenance and overall cost. The following section covers common failures and quick fixes.

What Are Frequent Issues Like Clogs and Leaks and Their Solutions?

Clogs usually start at the strainer, P‑trap, or in the trap arm where solids collect. First steps: remove and clean the strainer and trap, and use a hand auger for deeper clogs. Leaks commonly show at slip‑joint connections or supply valves and can sometimes be fixed by tightening fittings or replacing worn washers until a permanent repair is scheduled. If slow drains persist after cleaning, the vent or slope may be the problem and should be evaluated by a technician. Recurring issues or work that opens walls or floors warrants a licensed plumber to diagnose and repair to code.

Regular checks and small fixes keep emergencies at bay and prolong drain component life. When hidden leaks or persistent odors are suspected, a professional inspection prevents unseen water damage.

How Does Proper Plumbing Layout Design Reduce Maintenance Needs?

A well‑designed layout cuts maintenance by eliminating low spots, keeping the trap accessible, and preserving correct venting so siphoning and odors are unlikely. Good geometry reduces places where debris collects and makes servicing easier. Design with service in mind — put shut‑offs within reach, avoid crammed trap locations, and use removable fittings — so routine tasks like trap cleaning and supply replacement take less time. Choosing corrosion‑resistant materials and maintaining proper slope also lowers long‑term failure rates.

Applying these principles during planning saves time and expense over the life of the installation and supports straightforward, code‑compliant repairs when needed.

Why Choose Frost and Kretsch Plumbing for Your Kitchen Sink Plumbing Needs?

Frost and Kretsch Plumbing offers residential and commercial services for fixture installation and repair, drain cleaning, water main and water heater work, sump pumps, and excavation. We back our work with clear promises: upfront estimates, 24/7 emergency service, and a 100% satisfaction guarantee. Licensed technicians handle complex venting, disposal integration, and code‑sensitive remodels. Call (586) 675-0097, (248) 600-0426, or (313) 881-2818 to discuss your project or request a written estimate.

Our local presence in New Baltimore, Birmingham, Warren, and Grosse Pointe helps homeowners and contractors navigate permits and inspections while ensuring installations meet local codes and serviceability goals. For remodels that need detailed diagrams or disposal installs, we can prepare plans and schedule qualified technicians to do the work right.

What Unique Services and Guarantees Does Frost and Kretsch Offer?

We offer a compact set of customer protections: 24/7 emergency response for urgent plumbing failures, transparent pricing with upfront estimates, a 100% satisfaction guarantee, and experienced licensed technicians for installations and repairs. These services matter when projects involve complex venting or electrical coordination for disposals — our licensed team and clear estimates reduce the chances of noncompliance or surprise charges. Serving both residential and commercial customers lets us keep consistent standards across job types.

Picking a contractor with these guarantees lowers project risk and speeds resolution if issues pop up after installation.

How Does Local Expertise Ensure Compliance with Michigan Plumbing Codes?

Local knowledge matters because Michigan code details, inspection practices, and permit rules vary by municipality. A contractor familiar with local requirements can size vents, set trap arm lengths, and place rough‑ins to pass inspection the first time. Our technicians work across New Baltimore, Birmingham, Warren, and Grosse Pointe and understand common code concerns like vent sizing, acceptable use of AAVs, trap arm limits, and inspection checklists. That experience reduces rework and avoids extra permit fees from failed inspections.

Hiring a local, code‑aware contractor helps homeowners align project timelines with permitting and gives clear guidance during plan review and execution to minimize costly corrections.

Frequently Asked Questions

What are the common signs that indicate a kitchen sink plumbing issue?

Look for slow drainage, persistent odors, and visible leaks. Slow draining often points to a clog in the strainer, P‑trap, or drain line. Foul smells may indicate trapped food or a failed trap seal, sometimes from poor venting. Visible leaks under the sink usually mean worn washers, loose slip joints, or corroded fittings. Addressing these signs early prevents bigger problems and more costly repairs.

How can I maintain my kitchen sink plumbing to prevent issues?

Regular maintenance keeps problems away. Clean the sink strainer often to stop debris from reaching the trap, run hot water occasionally to help dissolve grease, and inspect the P‑trap and connections for leaks or corrosion. Tighten any loose fittings and make sure the vent is clear. Installing an access panel makes future work easier. These simple steps extend the life of your plumbing and reduce emergencies.

What should I do if my kitchen sink is backing up?

If the sink backs up, stop using it to avoid overflow. Remove visible debris from the strainer, then try a plunger or a hand auger. If the clog remains, disassemble and clean the P‑trap. If multiple fixtures are affected or you can’t clear the blockage, call a licensed plumber to diagnose and resolve the issue safely.

Are there specific plumbing codes I should be aware of for kitchen sinks?

Yes — codes differ by location but typically require proper venting to prevent siphoning, minimum slope for drain lines (commonly 1/4″ per foot), and limits on trap arm length. Local rules can also govern the use of air admittance valves in island sinks and material choices. Consult local plumbing code or a licensed plumber before installation or renovation to avoid fines or rework.

What are the benefits of hiring a professional for kitchen sink plumbing?

Hiring a pro brings code knowledge, the right tools, and efficient diagnosis and installation. Professionals can ensure compliance, coordinate electrical work for disposals, and offer warranties on their work. A licensed plumber saves time, reduces risk of mistakes, and provides peace of mind for complex or code‑sensitive projects.

How can I choose the right kitchen sink for my plumbing needs?

Choose a sink based on space, how you cook, and your plumbing layout. Single basins work well for large pots and easy cleaning; double basins are better for multitasking. Farmhouse sinks often need cabinet changes, and island sinks require special venting. Review your rough‑in locations and consult a professional to ensure your choice fits both function and plumbing requirements so you avoid costly changes later.

Conclusion

A thoughtful kitchen sink plumbing layout keeps water flowing, prevents odors and clogs, and makes future service simple. Understanding sink types, rough‑in needs, and how disposals and dishwashers change routing helps you plan a durable, code‑compliant installation. If you want professional help, Frost and Kretsch Plumbing offers experienced technicians, clear estimates, and reliable installations tailored to your project. Contact us to schedule a consultation and make sure your kitchen plumbing is safe, functional, and built to last.
